The Link

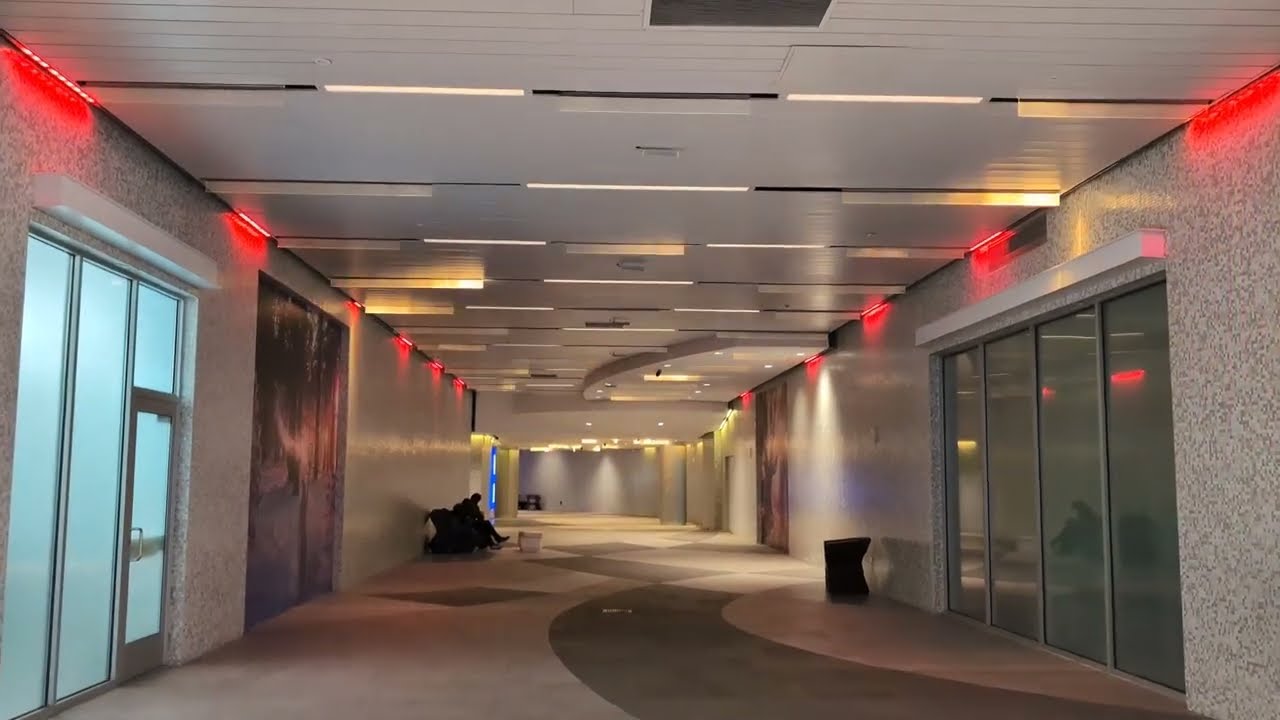

The Link at Pointe Orlando is a transformative 100-foot passageway designed to enhance connectivity and visual appeal. For this project, I developed a 3D DMX lighting visualization system in Unreal Engine and a generative visual form called “Bounce” using TouchDesigner.

I engineered a set of rules to automate lighting behavior, enabling seamless integration of sensor-based location detection and audio-responsive DMX lighting. By directly importing DMX lighting patches and addresses from the installed setup at the venue, we achieved a seamless mapping of physical and digital space. Leveraging Unreal Engine and TouchDesigner, I rapidly prototyped various visual concepts for the client.

Real-time location data from the Machine Vision System was sent to virtual characters in Unreal Engine, demonstrating dynamic changes in sound and lighting as people moved through the space. The client was highly satisfied, leading to new project opportunities.

Tools Used

Unreal Engine 4.26 TouchDesigner Cinema 4D OWL Live Streaming Toolkit OSC

Developed Systems

DMX Light Fixture & Patch Generator Modular Lighting Fixture Blueprint Realistic Rendering / Optimization Audio-Responsive DMX Lighting Sensor-Based Location Detection Generative Visuals (TouchDesigner)

Pre-Visualization

I developed a 3D previsualization system to confirm visual effects with clients using sensor systems and audio-responsive DMX lighting. By importing DMX lighting patches and addresses from the actual venue, we mapped the physical and digital space seamlessly. Real-time location data from the Machine Vision System was sent to virtual characters in Unreal Engine, showing how sound and lighting dynamically change as people walk through the space.

DMX Light Fixture & Patch Generator

I developed a tool that automatically creates hundreds of lighting fixture patches in the DMX Library and assigns different addresses and universes as specified in the DataTable. The tool also creates and places DMX Lighting Fixture BP Actors in the Outliner, assigning each fixture’s name, transform, and fixture patch in the DMX Component. This significantly accelerated the 3D model and lighting import process, allowing my team to focus on creating more visual prototypes for the client within a limited time period.
